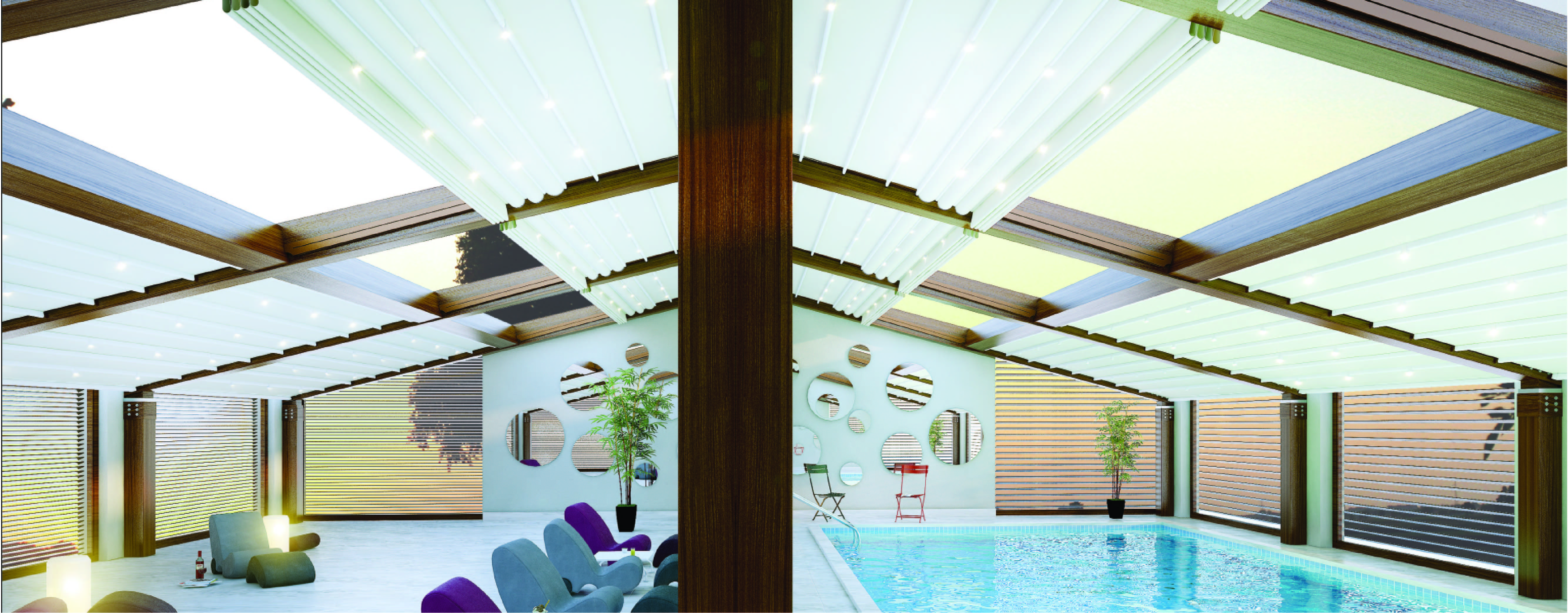

The PURE retractable roof system allows a flexible integration solution between existing timber or steel structures with a operable architectural roof to allow outdoor areas to be used in any weather conditions. The system offers a wind rating up to Beaufort class 11 (Up to 117km/h) and is designed to stand up to any weather conditions rain, hail or shine.
The system is manufactured to size using high grade 6063 extruded aluminium profiles finished with thermosetting powder coating which provides superior overall performance for exterior product applications. All bolts, screws and pins are high grade stainless steel to ensure extended system life.
The Pure rafter profiles (60 x 125 mm) have been designed with unique Water Guard side channels for ease of attachment to any structure and allow for projections up to 10m in a single system. The width of the system is site specific and available in any size up to 13m. Overall the Pure can offer up to 130sqm of protection at the touch of a button but linking multiple systems is also possible and made easy by our patented Storm Channel joining system that ensures 100% waterproof join everytime.
Remote controlled motorisation is provided by utilising European technology (SOMFY) through a custom built direct drive motor system to ensure smooth and quick operation at 34RPM. The optional hi powered LED-TEC lighting system provides a practical touch of class and when coupled with a remote dimming controller allows the user to change the mood to suit the surrounding environment.
The heart of the system is driven by multiple eight wheel slider carriages (Each slider carriage has a load limit of 600kgs) that incorporates triple layer barrier system and works in conjunction with a timing belt that has been reinforced with multiple internal stainless steel cables to provide a pulling strength of over 966kg. It’s this tension that is applied to the fabric membrane to allow an angle of 6 degrees fall possible and ensure all water drains away.
The French manufactured, fire rated and 100% waterproof architectural membrane DICKSON fabric is available in a range of colours in both opaque and transparent that provides maximum stability and resistance to temperature, moisture and dirt. It does not shrink or bag, and the acrylic top coating makes it very easy to clean for years to come. When not in use the fabric is neatly retracted under the systems hood to provide protection from the elements when not required.
To ensure the highest level of protection, this pergola systems come standard finished with Stormguard Soft Touch edge seal on all parameters. Stormguard provides the ultimate protection against rain and draught intrusion around the outside of the system and is only available on our systems. Stormguards Soft Touch edge seal is produced from an extra soft & flexible rubber to ensure the best possible protection from the elements.
This extra attention to detail is what sets us apart from our competitors and is why we are at the forefront of our market worldwide.
